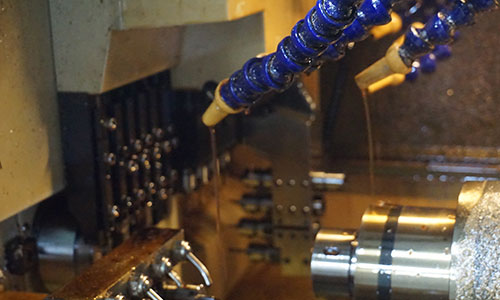

5 axis Precision Turning Machines
- 2.760” Dia
- Dual Spindle
- Multi-Function CNC Milling 12 Live Tool Turret
- Auto Bar Feeder
- Touch probe for setup and in process gauging
Auto Longitudinal lathes
- 787” Dia.
- Bar Loader
- 10 Hose Cool Blaster
- 5 Live Cross Drilling Spindles

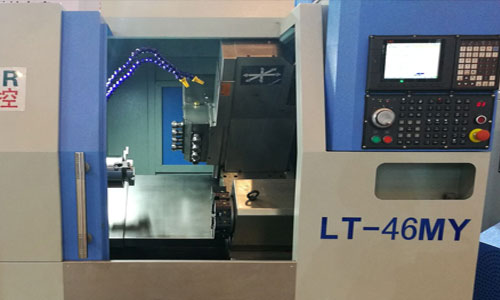

Turn-Mill Compound Machine
- 1.259” Dia.
- Bar Loader
- 8 Hose Cool Blaster
- 20 Tools Capacity
- 4 Live Tool Spindles

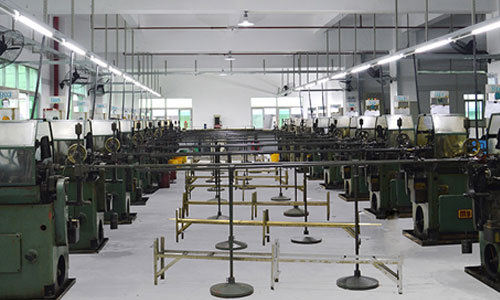

Auto Lathe Workshop
Types include gap bed engine and slant bed computer numerical control (CNC) lathes.Spindle speed ranges from 13 rpm to 5,000 rpm.

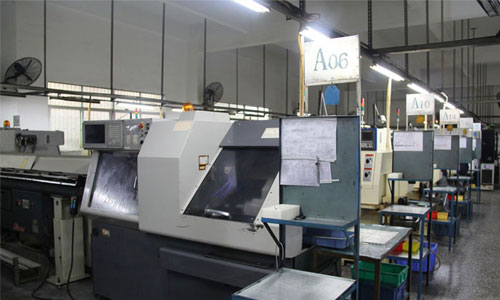

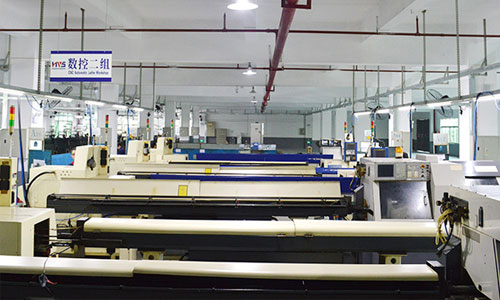

Swiss Machine Workshop
Custom manufacturer with 100 plus swiss automatics. Equipment includes cutting & shaping, gauging devices
Cnc Turning Workshop
Turning can be done on parts in diameters up to 28 in. and lengths up to 48 in. in 0.0005 in. tolerances.
Production Policy
Our Equipment Advantage
When many users finish a part in a single cycle particularly one that requires multiple operations on multiple machines, they quickly change their mind on the benefits of these machines. While the Swiss-type lathes come with 5 or more axes, the conventional type lathes often feature 3-4 axes. Many shop personnel – particularly first time users – have been amazed by the amount or work the machine can perform in a smaller work zone.

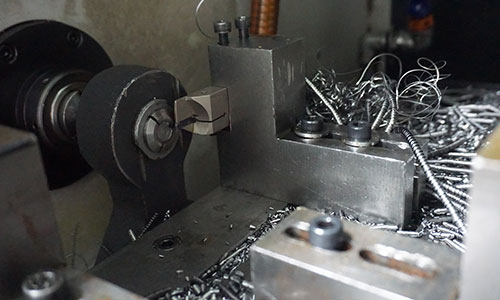

- Our Swiss Turning Facility currently contains 4 Star CNC Swiss Screw Machines
- with a capacity up to 20 mm (3/4″). Accuracy is 0.005mm.
- They are ideal for the manufacture of complex, small diameter components.
- These machines are equipped with bar feeders for automated machining of small parts.
- All machining operations of the Star Swiss Turning Machines can be accomplished
- with outstanding accuracy and control including.
- Applied material is Al Alloy, Stainless steel, Engineering Plastic, Cold Roll Steel, Copper, Braze etc
PTJ Prototype Swiss Machining Capabilities
From Swiss Machining to Precision 5 Axis Machining, PTJ Prototype Shop has the tools for your next project. View our equipment list below to see the wide array of machines we use to get the job done right.
Machine Name | Machine Brand | Machine Type | Sets |
Cnc Turning Lathe | Zexincnc | 46 | 1 |
Cnc Turning Lathe | Difen | 46 | 2 |
Cnc Turning Lathe | Achmick | 46 | 2 |
Cnc Turning Lathe | Zexincnc | 36 | 1 |
Auto Lathe | MYLAS | 1525 | 30 |
Cnc Turning Lathe | Bysk | 20 | 3 |
Cnc Turning Lathe | Bysk | 15 | 1 |
Cnc Turning Lathe | MUCUN | 20 | 2 |
Cnc Turning Lathe | Siemens | 76 | 2 |
Cnc Turning Lathe | Siemens | 75 | 1 |
5 Axis Longitudinal Lathes | Tsugami | 265 | 1 |
Swiss Machining Lathe | Tsugami | 206 | 21 |
4 Axis Turning Lathe | / | 5 | |
Instrument lathe | / | 15 | 2 |
Instrument lathe | / | 20 | 1 |
Rolling Machine | / | / | 2 |
Automatic Milling Machine | / | / | 3 |
Bench Drill | / | / | 2 |
Drilling Machine | / | / | 1 |
Tapping Machine | / | / | 4 |
High-Speed Punch Lathe | / | / | 12 |
Manual Punch | / | / | 1 |
Magnetic Grinding Machine | / | / | 1 |
High-Speed Grinding Machine | / | / | 2 |
Spring Machine | / | / | 1 |
Remarks: There are a total of 14 CNC lathes, a total of 30 automatic lathes, a total of 22 centering machines, a total of 3 precision turning machining centers, and other equipment, please review the form. For testing equipment list, please click Quality | |||
